workflow

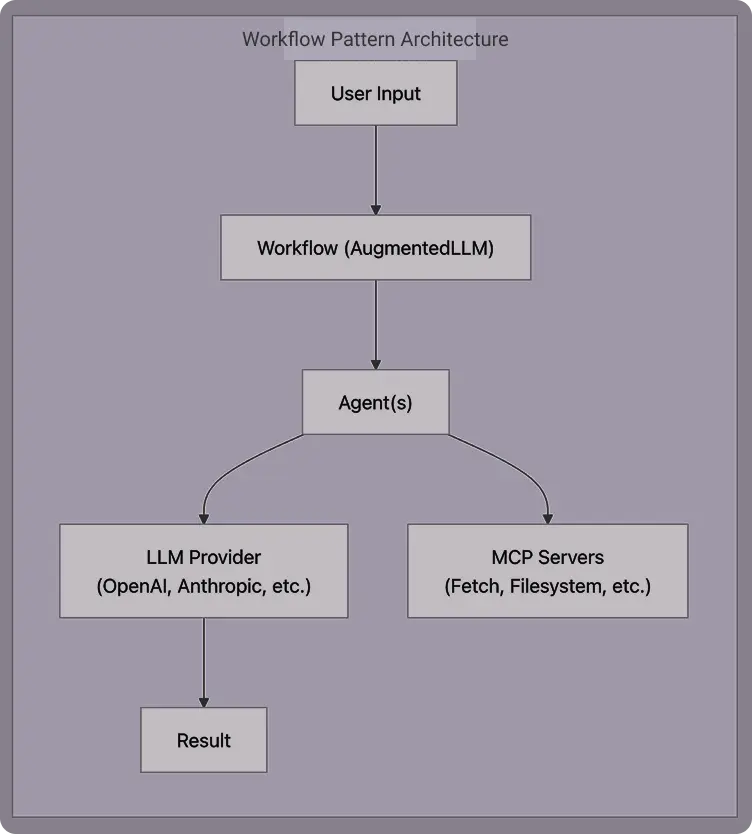

Core Concepts

All workflow patterns in MCP Agent share fundamental characteristics that enable their composability:

  • AugmentedLLM Foundation: Every workflow pattern extends the AugmentedLLM class, allowing any workflow to be used anywhere an LLM is expected.
  • Uniform Interface: All patterns expose the same core methods (generate, generate_str, generate_structured), facilitating interchangeability.
  • Agent-Based Architecture: Workflows orchestrate one or more Agents, each with specific instructions and access to MCP servers.
  • Tool Usage: Patterns leverage MCP servers for extended capabilities through tool calls.

Available Workflow Patterns

AugmentedLLM

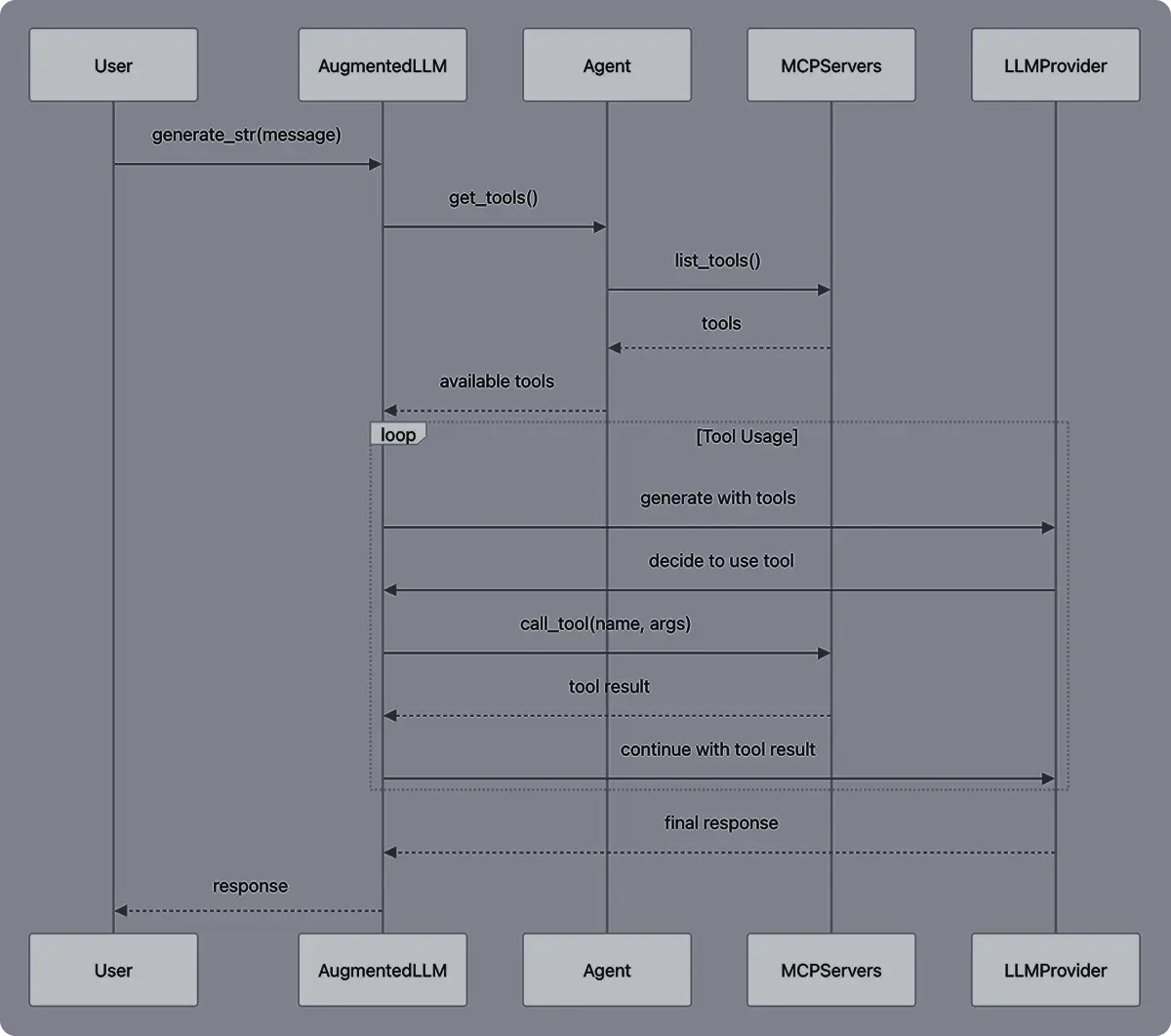

The foundation of all workflow patterns, AugmentedLLM enhances language models with MCP server tools and a consistent interface.

Key Features:

  • Base implementation for all other workflow patterns
  • Provides memory for conversation history
  • Implements standard methods: generate, generate_str, and generate_structured
  • Supports various LLM providers through implementation classes (OpenAI, Anthropic, etc.)

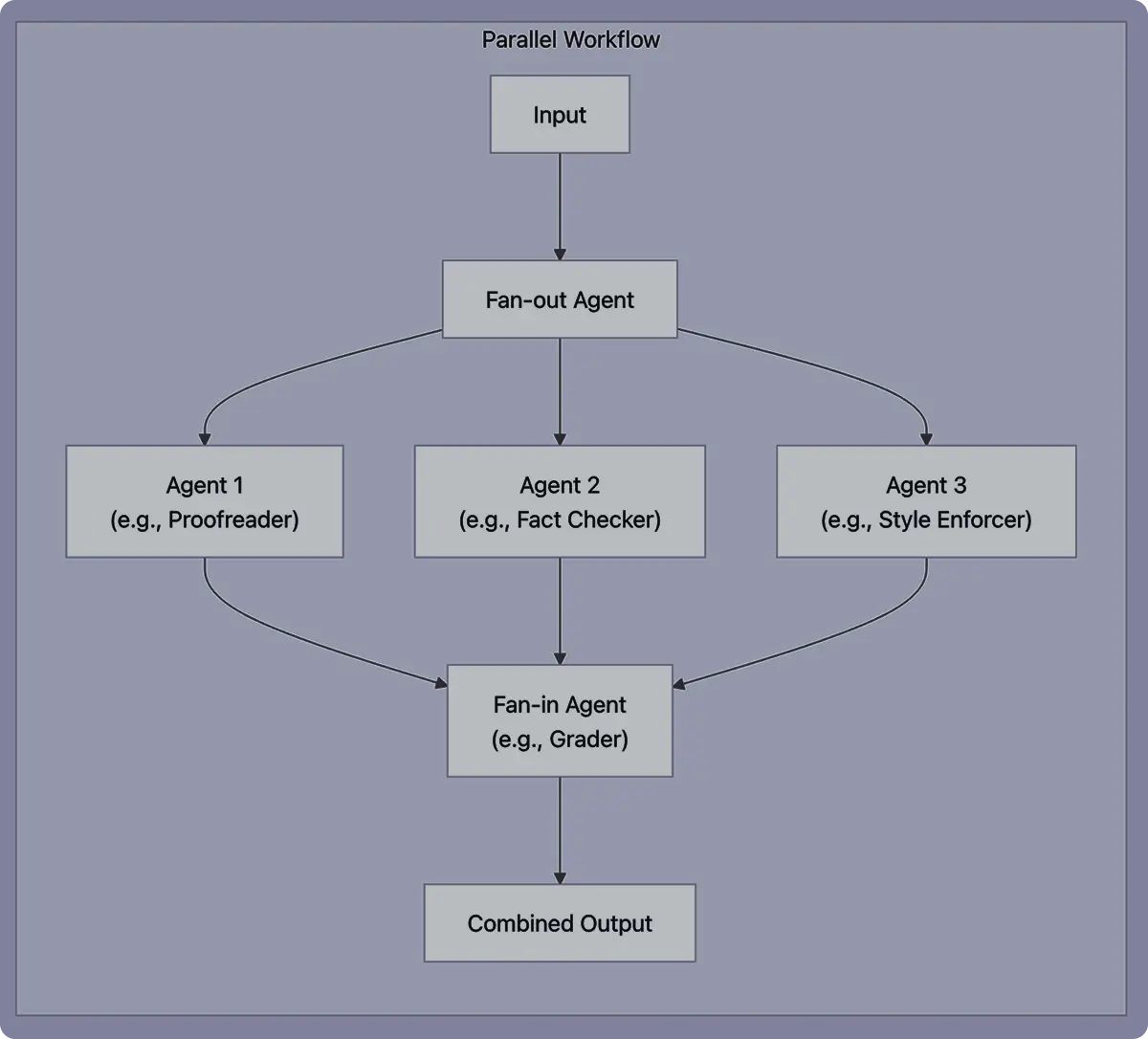

Parallel Workflow

The Parallel workflow distributes tasks to multiple sub-agents and combines their results.

Implementation: The ParallelLLM class takes a fan-in agent and a list of fan-out agents. It:

  • Distributes the input to each fan-out agent
  • Runs all agents in parallel (truly concurrent)
  • Collects outputs from all fan-out agents
  • Feeds these outputs to the fan-in agent to create a consolidated result

Example Usage:

parallel = ParallelLLM(

    fan_in_agent=grader,

    fan_out_agents=[proofreader, fact_checker, style_enforcer],

    llm_factory=OpenAIAugmentedLLM,

)


result = await parallel.generate_str(message="Student submission: ...")

Use Cases:

  • Document analysis with multiple specialists
  • Multi-faceted evaluation tasks
  • Tasks requiring different expertise areas

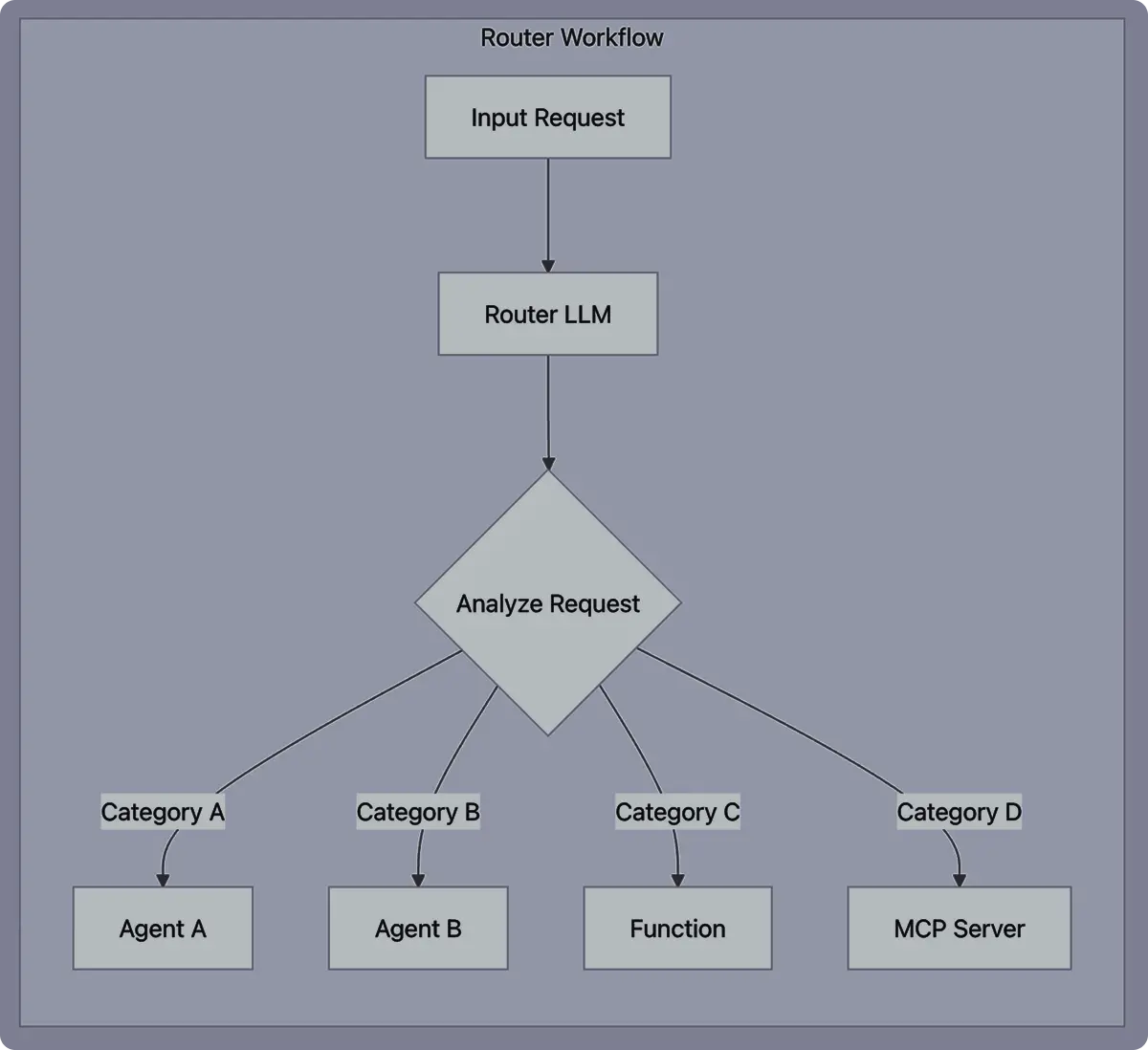

Router Workflow

The Router pattern directs requests to the most appropriate handler based on the content.

Implementation Types:

  • LLMRouter: Uses an LLM to classify and route requests
  • EmbeddingRouter: Uses embedding models for faster, less expensive classification

Functions:

  • route: Returns top matches across all categories
  • route_to_agent: Routes specifically to matching agents
  • route_to_server: Routes to appropriate MCP servers
  • route_to_function: Routes to Python functions

Example Usage:

router = LLMRouter(

    llm=llm,

    agents=[finder_agent, writer_agent],

    functions=[print_hello_world]

)


result = await router.route(

    request = "Find and print the README.md contents",

    top_k=1

)

chosen_agent = results[0].result

Use Cases:

  • Multi-agent systems with specialized components
  • Intent-based processing
  • Command routing
